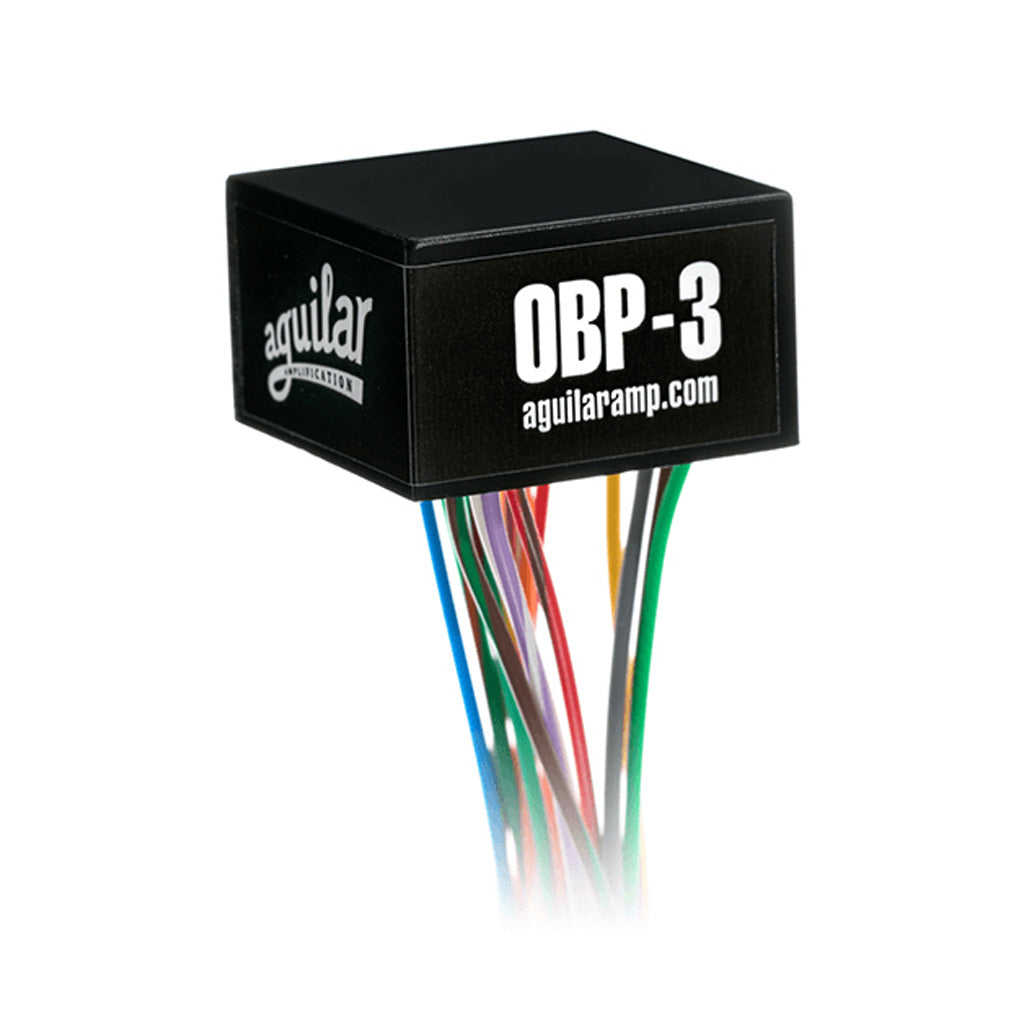

Aguilar OBP-3TK/PP Three Band On-Board Bass Preamp Kit
Hover over image to zoom in
Drag to rotate 360
(Incl. Taxes & Shipping Cost)
About This Product
The OBP-3 is Aguilar’s most flexible onboard preamp design, providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz. The OBP-3 has multiple wiring options and can be wired with either a push/pull pot OR mini-toggle for midrange frequency selection.
Features:
- Low noise discrete FET input stage,
- Centre detent 50 K linear pots
- Dual concentric pot
- 324 hours of battery life
- Mid pot is push/pull for Midrange frequency selection
Specifications
- Bass control: plus/minus 18 dB @ 40 Hz
- Mid control: plus/minus 16 dB @ 400Hz or 800 Hz. User-selectable frequency centre
- Treble control: plus/minus 16 dB @ 6.5 kHz
- Input impedance: 1 megohm
- Output impedance: 100 ohms 9 or 18 volts operation
- Distortion: .019 into 10k ohm load
- Noise: -95 dBm unweighted
- Wire lead length: 6.50 inches
- Includes: Seperate Treble, Mid and Bass pots
- Dimensions: 0.98″ (W) x 0.98″ (L) x 0.59″ (D)
PRODUCT HIGHLIGHTS
- Unleash Your Tone
- Precision EQ
- Discrete FET Power
- Extended Playtime
Discover Aguilar
Aguilar engineering powers bassists with punchy, articulate tone and precision.
