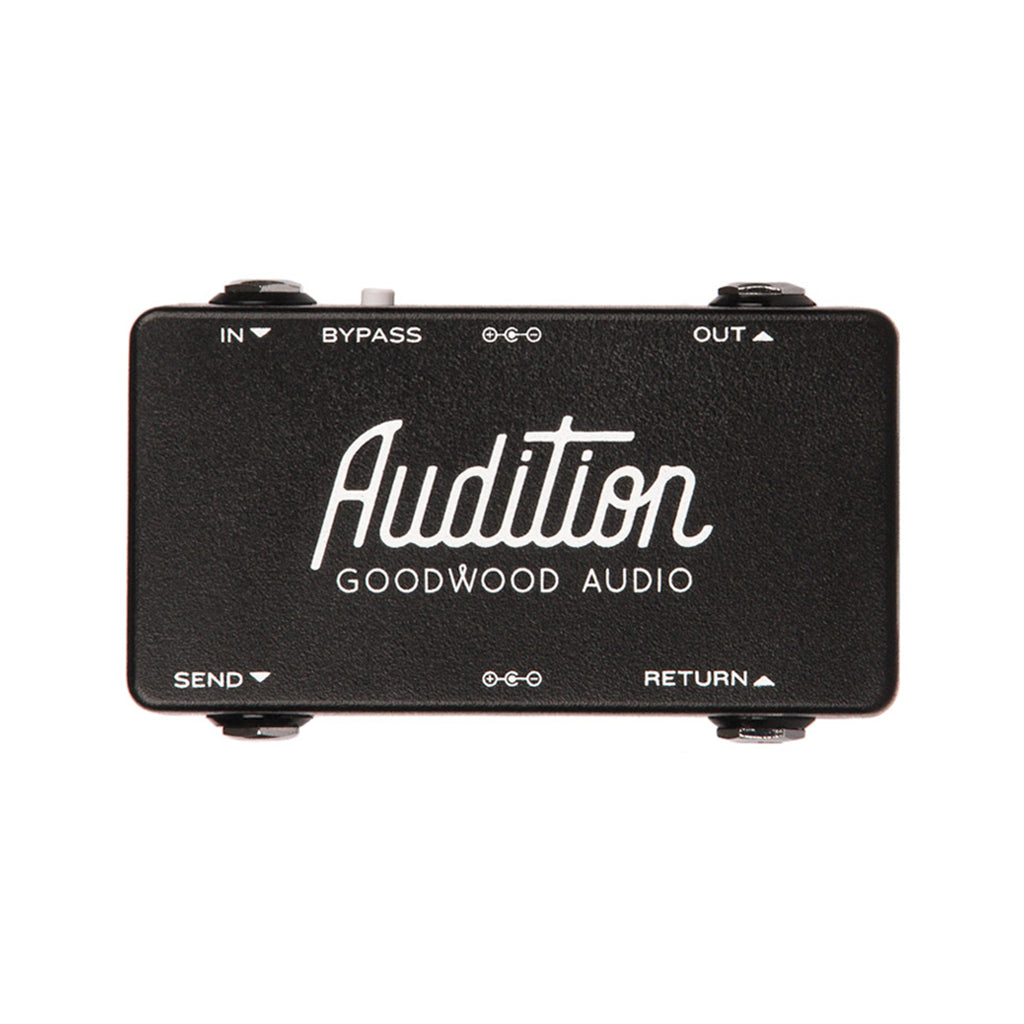

Goodwood Audio Audition Guitar Pedal

Re-wiring your pedal board is not something you want to be doing every time you want to try a new pedal. Goodwood Audio's Audition allows you to patch in a new pedal without having to re-wire your entire board. Also use Audition to run your pedal board into an amps FX loop without having to re-patch your board.

Signal Chain For Auditioning - Audition can be placed anywhere in your signal chain. If you are going to audition a lot of overdrive pedals, put Audition closer to the beginning of your signal chain. If you are going to audition modulation, delays and reverbs, put Audition closer to the end of your signal chain. If you are unsure, put Audition after your last overdrive and before your modulation effects.

Signal Chain For Using An Amp FX Loop - If you are going to be using an amp’s FX loop, place Audition after your last overdrive/dry effect and route signal to the ‘In’ jack on Audition. If you don’t want to use the FX loop, simply unplug the send and return jacks and plug the last pedal on your board to the amp input.

Push Button - The push button is on Audition for musicians running Audition underneath their angled pedal board. You can now patch Audition into the side panel jacks and turn Audition ON to try a new pedal, or turn Audition OFF to bypass the side panel jacks and pass signal uninterrupted.

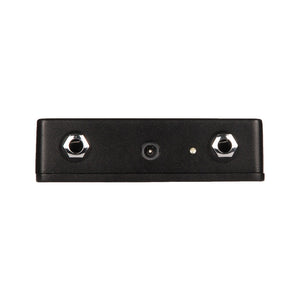

Power - The power jacks on Audition are used to power the LED and more importantly to the pedal being auditioned.

Dimensions – 66mm L x 111mm W x 31mm H (including all jacks and push buttons).
