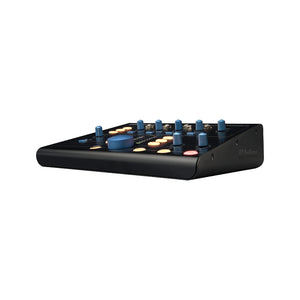

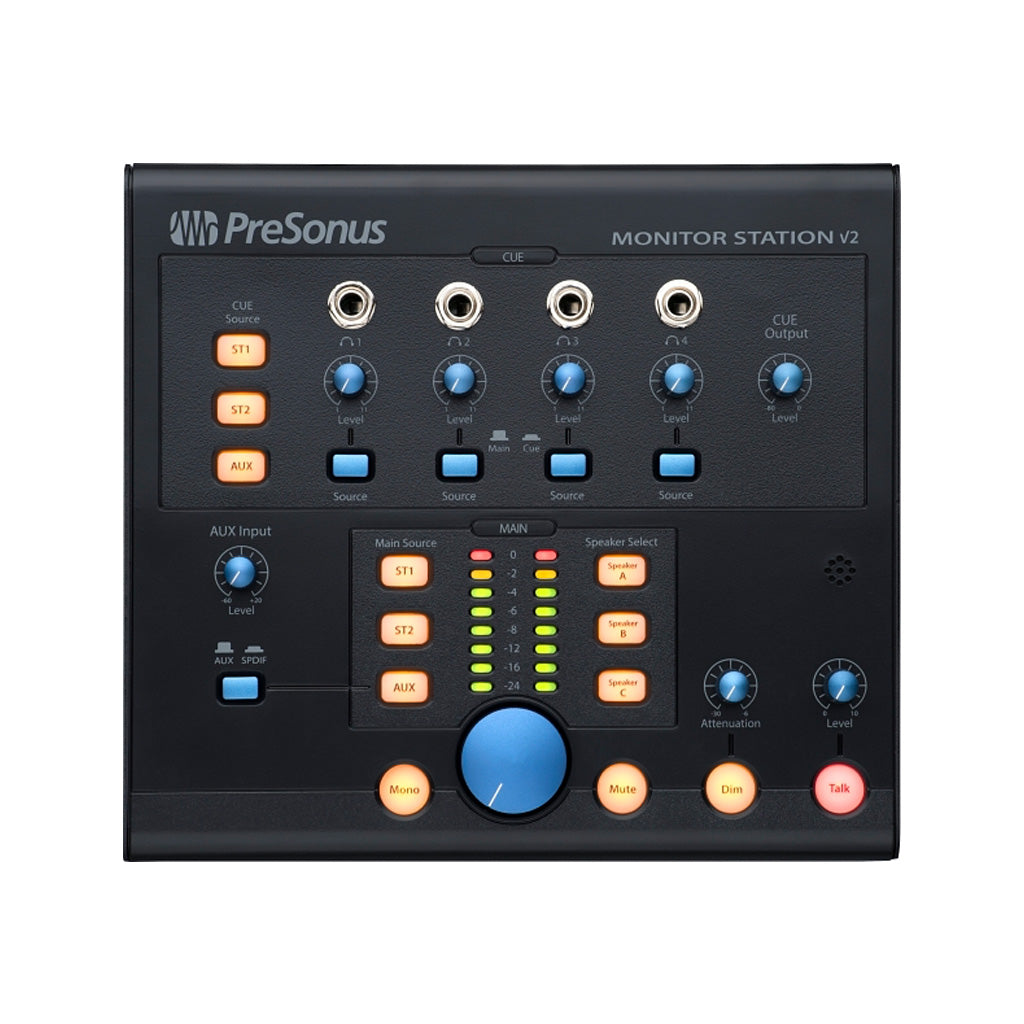

PreSonus Monitor Station V2 Monitoring Controller

With its intuitive layout, extensive features and I/O and PreSonus®’ famed sound quality, the Monitor Station V2 provides a versatile, convenient and affordable solution for managing your studio monitoring system from your desktop. Switch quickly and easily between up to four audio sources, including two pairs of balanced ¼-inch inputs and a third input channel that can be fed from a S/PDIF digital input (up to 96 kHz), unbalanced RCA Aux inputs with gain control and a ⅛-inch TRS unbalanced input. A button switches between the analogue Aux and digital S/PDIF inputs.

Audition on up to three stereo pairs of speakers, each with separate level control. All speakers can be available, or one pair at a time, or choose between speakers A and B, with output C active to feed a subwoofer. You can set each set of speakers’ levels individually so that when you switch between speakers, your monitoring level stays the same.

Four loud, clear ¼-inch TRS headphone outs ensure everyone hears every note. Each headphone out has a Main/Cue source selector and individual output-level control. A built-in, electret-condenser Talkback mic lets you communicate with the musicians. A flaming red Talk button activates the mic and attenuates the cue signal. Eight-segment, three-colour LED meters indicate left and right signal levels and can be set in for +4 dB, +10 dB, or +18 dB levels.

So take control of your monitoring system the way the pros do with the PreSonus Monitor Station V2!

Features:

• 2 Stereo pairs of ¼-inch TRS inputs, 1 Stereo pair of RCA Aux inputs with level control and 1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
• 3 Stereo pairs of ¼-inch TRS speaker outputs with level controls, 1 Stereo pair of ¼-inch TRS Main outputs and 1 Stereo pair of ¼-inch TRS Cue outputs
• 4 ¼-inch TRS screaming-loud stereo headphone outputs
• Large Main level control
• 3 Individual Main Source (ST1, ST2, Aux) select switches
• 3 Individual Speaker Select switches
• Cue section with Source select (ST1, ST2, Aux) and output-level control
• Main Mute, Mono, and Dim switches with variable Dim attenuation
• 8-segment colour LED input meters with a selectable reference level
• Built-in electret-condenser talkback microphone with input-gain control and Talkback button

Specifications

• Voltage: 100-120V
• Connection Type: External DC Transformer/Internal Line, 18 VDC
• Type: Electret Condenser
• Sensitivity: -42 dB
• Line Inputs Frequency Response: 10 Hz to 65 kHz
• Main and Line Output Frequency Response: 10 Hz to 50 kHz
• Headphones: 150 mW per channel
• Includes: Monitor Station V2 Studio Control Center, Monitor Station V2 external power supply, PreSonus Health Safety and Compliance Guide, PreSonus sticker, PreSonus product catalogue
• Dimensions: 9" (W) x 8.5" (D) x 2.5" (H)
• Weight: 2.72 kg
