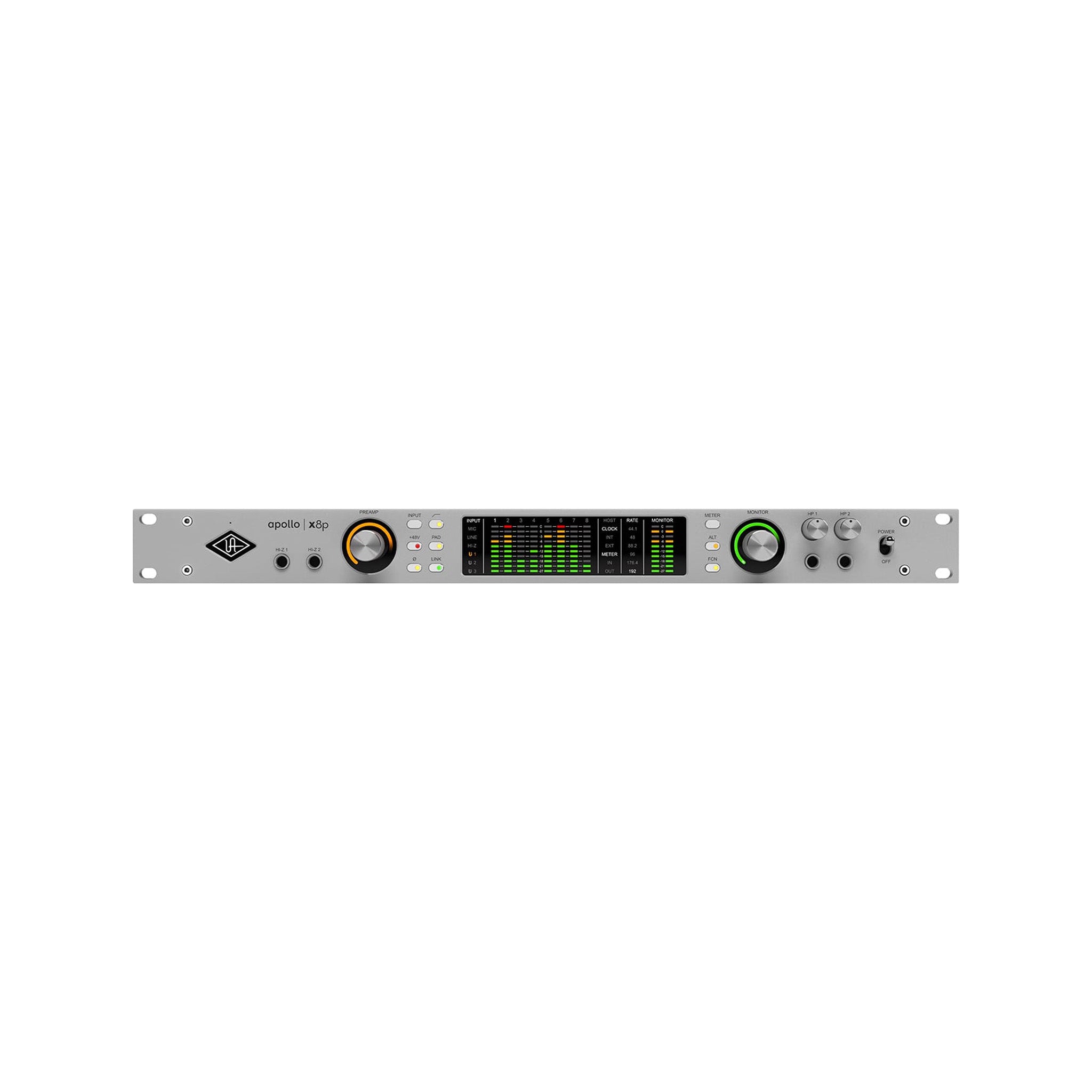

Universal Audio Apollo x8p Gen 2 Essentials+ Thunderbolt Audio Interface
Hover over image to zoom in
Drag to rotate 360
RM19,699.00
-4%
RM18,715.00
(Incl. Taxes)
About This Product
Universal Audio'smost advanced Apollo x8 is here. For creators and producers running bigger projects who need the highest-resolution audio conversion, four Unison™ mic preamps, and real-time UAD processing — which lets you record through plug-ins from Auto-Tune, Neve, API, Manley, and more without latency — Apollo x8 puts legendary UA sound and craftsmanship right in your rack.
Essentials+ Plug-ins Bundles:
- Channel Strips & Preamps: Century Tube Channel Strip, CS-1 Channel Strip, Helios Type 69 Preamp & EQ, Precision Channel Strip, UA 610-A Preamp & EQ, UA 610-B Preamp & EQ
- Compressors/Limiters: Fairchild 670 Legacy, Teletronix LA-2A Classic Leveler, Teletronix LA-2A Gray Classic Leveler, Teletronix LA-2A Silver Classic Leveler, Teletronix LA-2A Legacy Leveling Amplifier, UA 1176LN Legacy, UA 1176SE Legacy
- Equalizers: Helios Type 69 Legacy EQ, Pultec EQP-1A Legacy EQ, Pultec EQP-1A Passive EQ, Pultec HLF-3C Passive EQ, Pultec MEQ-5 Passive EQ, Pultec Pro Legacy EQ
- Special Processing: Auto-Tune Realtime Access, Oxide Tape Recorder, Precision Enhancer Hz, Verve Analog Machines Essentials
- Instruments: PolyMAX Polyphonic Synth
- Delay & Modulation: Galaxy Tape Echo, Precision Delay Mod, Precision Delay Mod L
- Reverbs & Rooms: Precision Reflection Engine, Pure Plate Reverb, RealVerb Pro Custom Room Modeler
- Guitar & Bass: Ampeg SVT-VR Classic Bass Amplifier, Marshall Plexi Classic Amplifier, Raw Distortion
Features:
- 16 x 22 Thunderbolt 3 audio interface with HEXA Core DSP plug-in processing
- Eight Unison™ mic preamps, two Hi-Z instrument inputs, DB-25 input (line 1-8), two optical Toslink I/O (ADAT S/MUX or S/PDIF), word clock I/O (BNC)
- Two 1/4" monitor outs, DB-25 output (ALT / 7.1 surround), two 1/4" TRS headphone outs
- Elite-class Apollo X Gen 2 converters with 24-bit / 192 kHz resolution featuring Dual-Crystal Clocking for ultra-low jitter at all sample rates
- Enhanced D/A for critical monitoring and playback with 130 dB dynamic range and astonishingly low THD of -127 dB
- Fully-featured monitor controller with alternate speaker switching and integrated talkback for easy communication with talent
- Updated UAD Console app featuring Auto-Gain, Plug-In Scenes, subwoofer integration with Bass Management, immersive audio support, and more
- Onboard DSP supports over 200 UAD plug-ins via VST, AU, and AAX 64 formats in all major DAWs
- Includes up to 50+ UAD plug-ins with Essentials+ or Studio+ Editions
- Compatible with LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live, and more
- Expandable with Thunderbolt Apollo interfaces and Dante via Apollo x16D
- Free industry-leading technical support from knowledgeable audio engineers
Specifications
- Simultaneous Channel I/O Count (analog + digital): 16 x 22 (ADAT mode)
- Microphone Inputs: Eight XLR female, pin 2 positive (combo XLR/TRS), 20 Hz – 20 kHz, ±0.07 dB Frequency Response, +10 dB to +65 dB Gain Range, +48V Phantom Power (switchable per mic input)
- High Impedance (Hi-Z) Instrument Inputs: Two ¼" female TS unbalanced, 20 Hz – 20 kHz, ±0.08 dB Frequency Range, +10 dB to +65 dB Gain Range
- Analog Line Inputs: Eight ¼" female TRS balanced (combo XLR/TRS) [One female DB25 (Tascam wiring), normalled], 20 Hz – 20 kHz, ±0.07 dB Frequency Range, +10 dB to +65 dB Gain Range ( (inputs 1 – 4 only)
- Analog Line Outputs (DC coupled): Eight (10 including Monitor outputs) Female DB25 (Tascam wiring), 20 Hz – 20 kHz, ±0.05 dB Frequency Range
- Analog Monitor Outputs (DC coupled): Two (one stereo pair) ¼" Female TRS Balanced, 20 Hz – 20 kHz, ±0.02 dB Frequency Range
- Headphone Outputs Two ¼" female TRS stereo, 20 Hz – 20 kHz, ±0.02 dB Frequency Range
- S/PDIF Channels: One stereo input, one stereo output
- Connector Type (shared with S/PDIF): Optical TOSLINK JIS F05
- Word Clock: One input, one output (BNC)
- Thunderbolt 3 Ports: Two (Mac Only)
- Simultaneous A/D Conversion: Eight channels
- Simultaneous D/A Conversion: 14 channels
- Supported Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
- Bit Depth Per Sample: 24
- Analog Round-Trip Latency: 1.1 milliseconds @ 96 kHz sample rate
- Power Supply: External AC-to-DC power supply, level VI compliant
- Includes: Apollo x8p Gen 2 audio interface, External power supply and region-specific AC cable (USA, EU, UK, ANZ, or Japan), Set of (4) rack-mount screws, Getting Started URL card
- Dimensions: 19" (W) x 12" (D) x 1.74" (H) / 482.6 mm (W) x 305 mm mm (D) x 44.2 mm (H) (1U rack space)
- Weight: 4.02 kg / 8.9 lbs
PRODUCT HIGHLIGHTS
- Unrivaled Clarity
- Realtime Mastery
- Legendary Tone
- For Pro Creators
